Watson Replacement Parts/ Type VS Selector Switch Model BA4005A

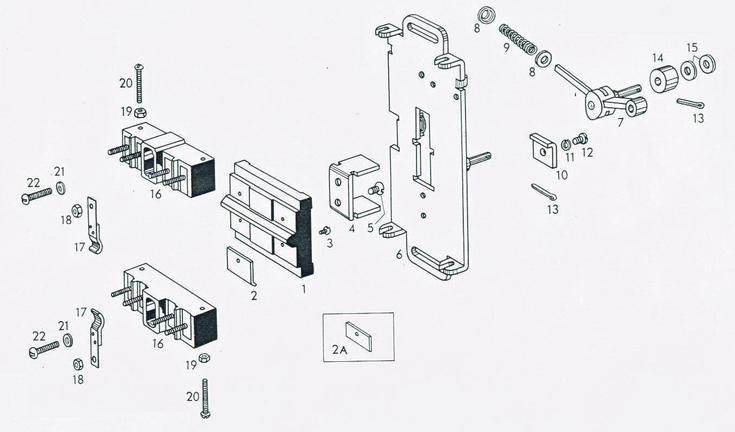

Watson Type VS Selector Switch Model BA4005A Diagram and Parts Listed Below:
WT BA4005
OEM# BA4005

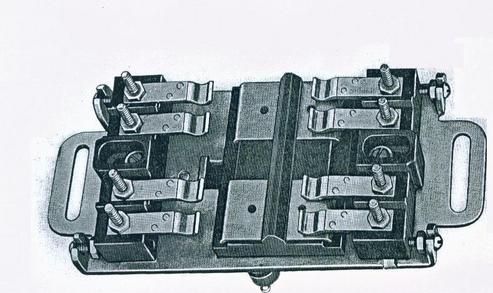

Watson Type VS Selector Switch
Model BA4005A
Ref # Part Name Part #
1 Sliding Contact Block DA4036
2 Contact Finger Plate EA4058
2A Contact Finger Half Plate EA4059
4 Contact Block Guide EA4064
5 Fl. hd. steel self locking machine screw 10-24 x 3/8
6 Mounting plate assembly DA4035
Consisting of:
Mounting plate DA4181
Fulcrum pin EA4076
7 Operating Arm Assembly DA4183
Consisting of:
Operating Arm EA4061
Spring Stud EA4062
Roller Pin EA4066
8 Cup Washer Nickel Plated EA4118
9 Spring GSC5
10 Stop EA4065
11 Split lockwasher #10
12 Rd. hd. steel machine screw 10-32 x 5/16
13 Cotter Pin 1/16 x 1/2
14 Roller EA4063
15 Brass washer 1/4"
16 Contact finger block EA4057
17 Contact finger assembly EA4060
Consisting of:
Finger Contact DA4189
Contact finger spring DA4190
18 Hex brass nut 8-32
19 Hex steel nut 8-32
20 Rd. hd. steel machine screw 8-32 x1
21 Brass washer #10
22 Rd. hd. steel machine screw 10-32 x 3/4
