Watson Replacement Parts/ 5B Interlock
WT 1023R
OEM# 1023R
Watson Type 5B Interlock
Single Swing Doors
Complete Assembly Right Hand
WT 1023L
OEM# 1023L
Watson Type 5B Interlock
Single Swing Doors
Complete Assembly Left Hand
OR
WT 1023R
OEM# 1023R
Watson Type 5B Interlock
Single Swing Doors
Complete Assembly Right Hand

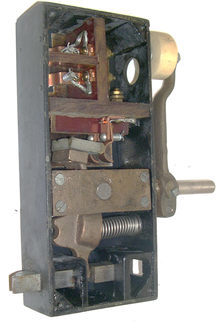

(Image of Entire Box Assembled)
W112
Primary Contact Assembly
for 5B Interlock
W111
Secondary Contact Assembly
for 5B Interlock

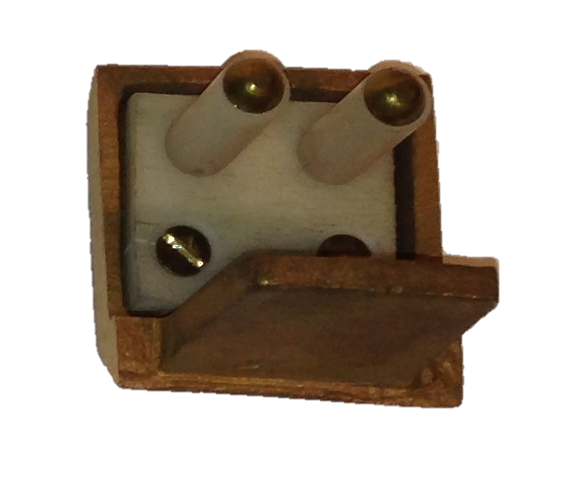

W117-8
Keeper with Contact Assembly, for 5B Interlock (SHORT)
WT DA1153
OEM# DA1153
Cover Plate
WT DA 1034
WT DA 1035
OEM: Watson DA 1034/ DA 1035
Contact Separator
Base 2-5/8" x 1-13/16" x 3/8"
Contact Separator 1-5/8" x 1-13/16" x 1/4"
WT DA 1042
WT DA 1043
OEM: Watson DA 1042/DA 1043
Contact Separator
Base 3-7/16" x 1-13/16" x 3/8"
Contact Separator 2-1/2" x 5/8" x 1/4"
WT DA1293
OEM: Watson DA1293
STRICKER CONTACT ASSEMBLY
Stricker Stud -(2) 5/16" dia.
Insulating Sleeve -(2) 1" long x 3/8" dia
Contact base 1-7/16" long x 1-1/4" wide x 3/16 thk.
Contact 1-3/32" long x 3/8" wide x 1/8" thk.
WT EA1010
OEM: Watson EA1010
Insulator
Length 1-1/2", Width 1-1/4", Thk. 1/16"
Slot 1-1/8" x 7/16", (2) 3/16" holes
WT EA1012
OEM: Watson EA1012
Insulator
Length 1-1/2", Width 1-1/4", Thk. 1/32"
(2) 3/16" dia. holes
WT GSC16
OEM: Watson GSC16
Spring
O.D. 7/32" dia., I.D. 3/16", Length 9/16"
WT DA1024
OEM: Watson DA1024
Operating Pin
Length 1-5/16", Ball 3/8" dia., Stem 3/16" dia.
WT GSC38
OEM: Watson GSC38
Spring
Length 2-7/8", O.D. 5/8", I.D. 1/2"
1 WT EA4027
OEM: Watson EA 4027
Spring Stud - 7/8" x 3/8"
2 WT GSC16
OEM: Watson GSC16
Spring - 9/16" long x 7/32" O.D. x 3/16"I.D
3 WT DA4225
OEM: Watson
Cup Washer -5/32" dia.
W116-8
Keeper with Contact Assembly, for 5B Interlock (LONG)
WT DA1293A
OEM: Watson DA1293
STRICKER CONTACT ASSEMBLY
Stricker Stud -(2) 5/16" dia.
Insulating Sleeve -(2) 1" long x 3/8" dia
Contact base 1-7/16" long x 1-1/4" wide x 3/16 thk.
Contact 1-3/32" long x 3/8" wide x 1/8" thk.
Including Insulators
